 首页>产品简介
|
| |
|
|
|
类型 |
系列 |
型号
(点击下载) |
图片 |
显示内容 |
外型尺寸
L X W X H
(mm) |
视域尺寸
(mm) |
点大小/点阵数
(mm) |
驱动器
|
备注 |
|
字符型 |
0801 |
ylf0801A |
|
8*1 |
41.0*30.5*5.0(10.0) |
30.0*14.0 |
0.60*0.70 |
KS0066 |
|
|

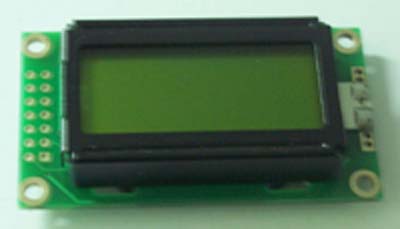

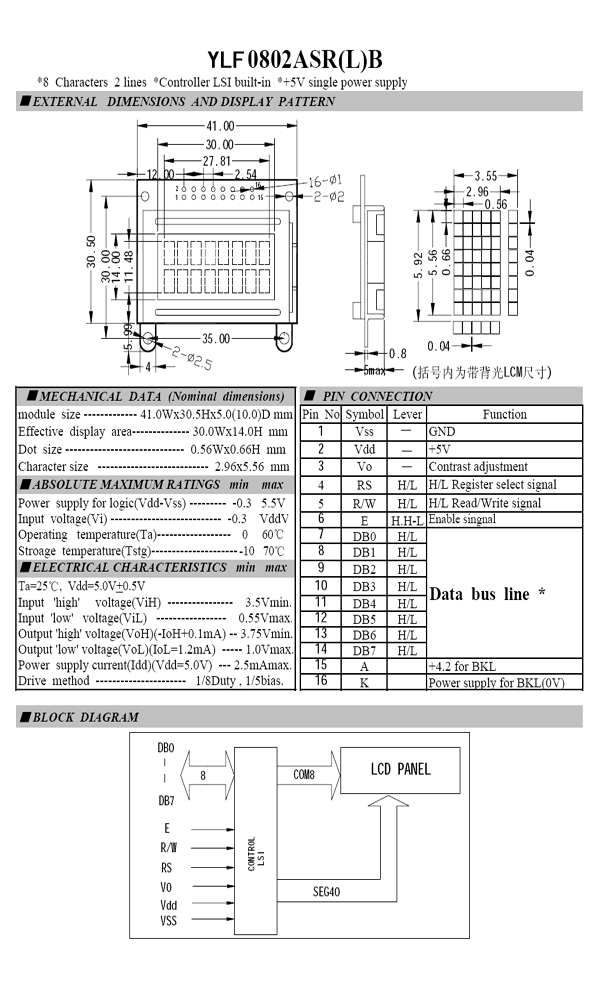

0802 |
|
|
8*2 |
41.0*30.5*5.0(10.0) |
30.0*14.0 |
0.56*0.66 |
|
|
|
|

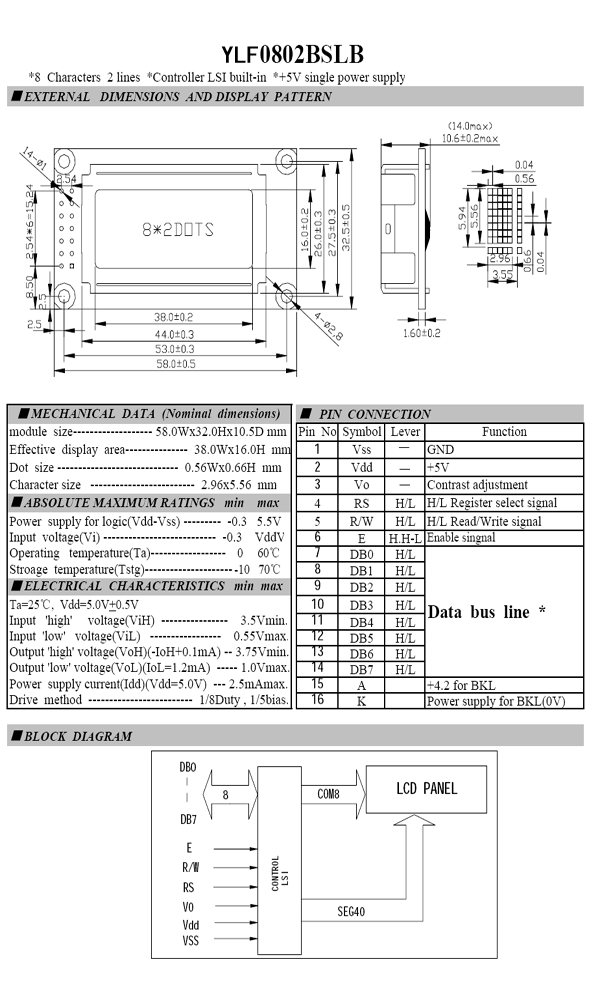

8*2 |
58.0*32.5*10.6(14.0) |
38.0*16.0 |
0.56*0.66 |
|
|

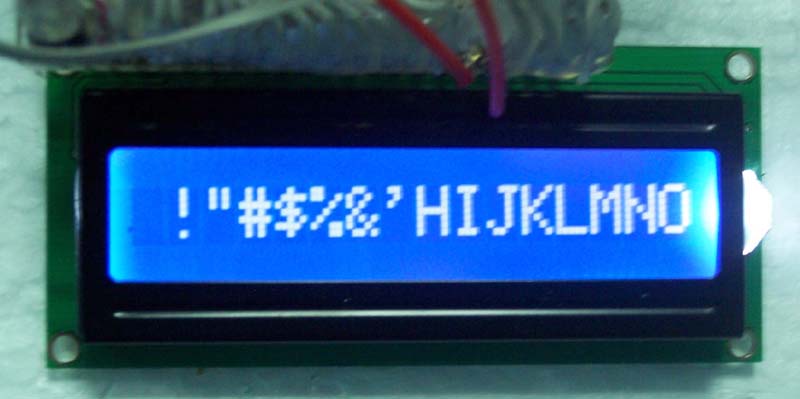

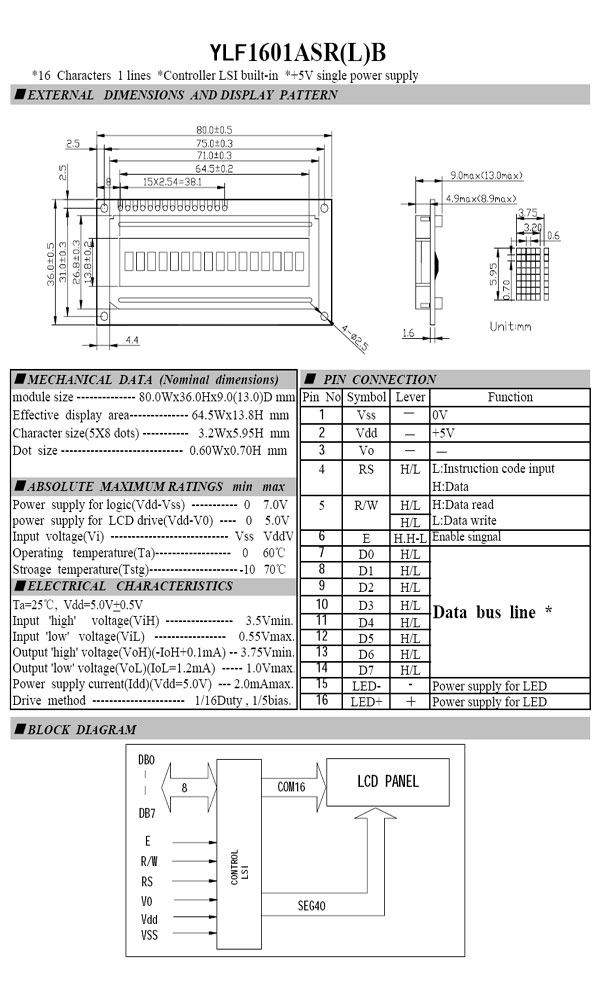

1601 |
|
|
16*1 |
80.0*36.0*5.0(9.0) |
64.5*13.8 |
0.60*0.70 |
|
|
|
|
16*1 |
80.0*36.0*5.0(9.0) |
64.5*13.8 |
0.60*0.70 |
|
|

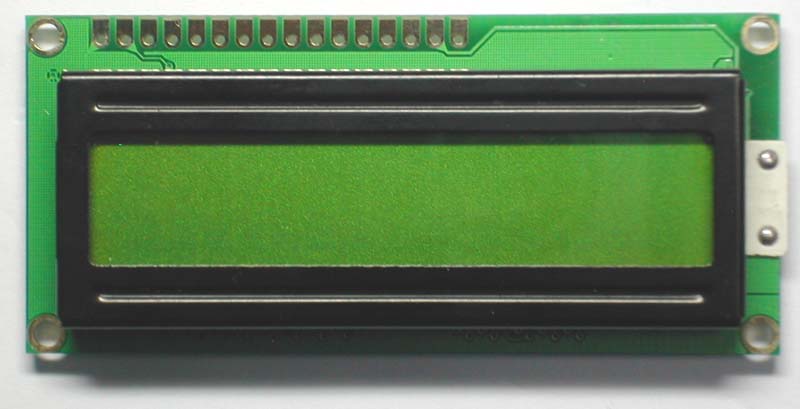

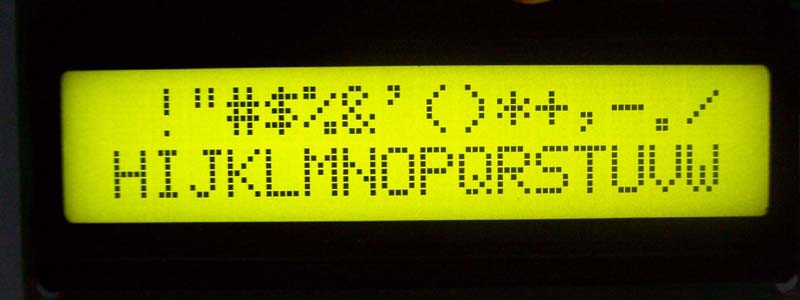

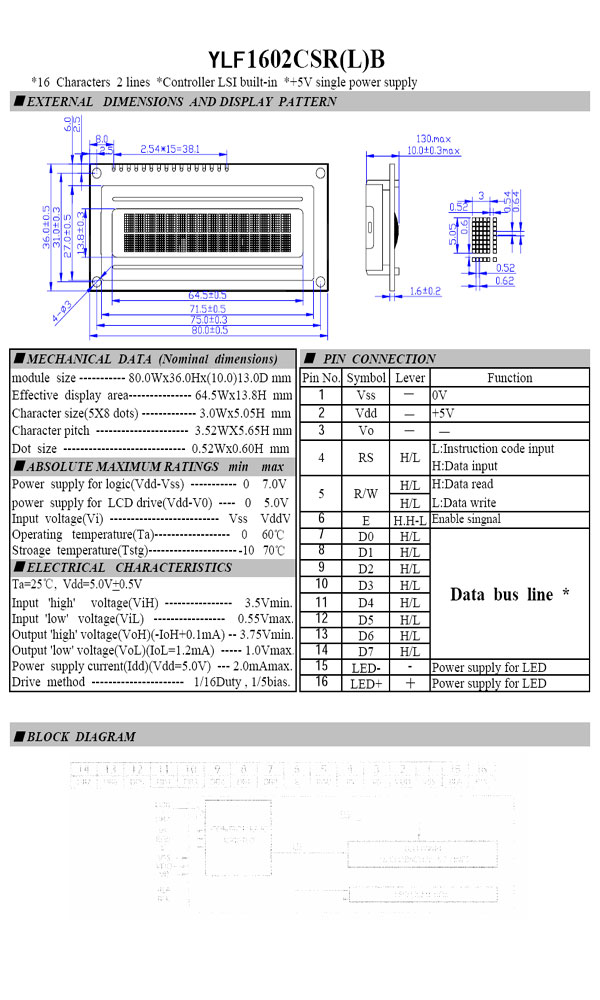

1602 |
|
|
16*2 |
80.0*36.0*10.0(13.0) |
64.5*14.0 |
0.52*0.60 |
|
| YLF1602E |
|
2*16 |
80.0*36.0* 0.52*0.54 |
64.5*14.0 |
0.62×0.64 |
|
|
|
16*2 |
80.0*36.0*10.0(13.0) |
64.5*13.8 |
0.52*0.60 |
|
|
|
|

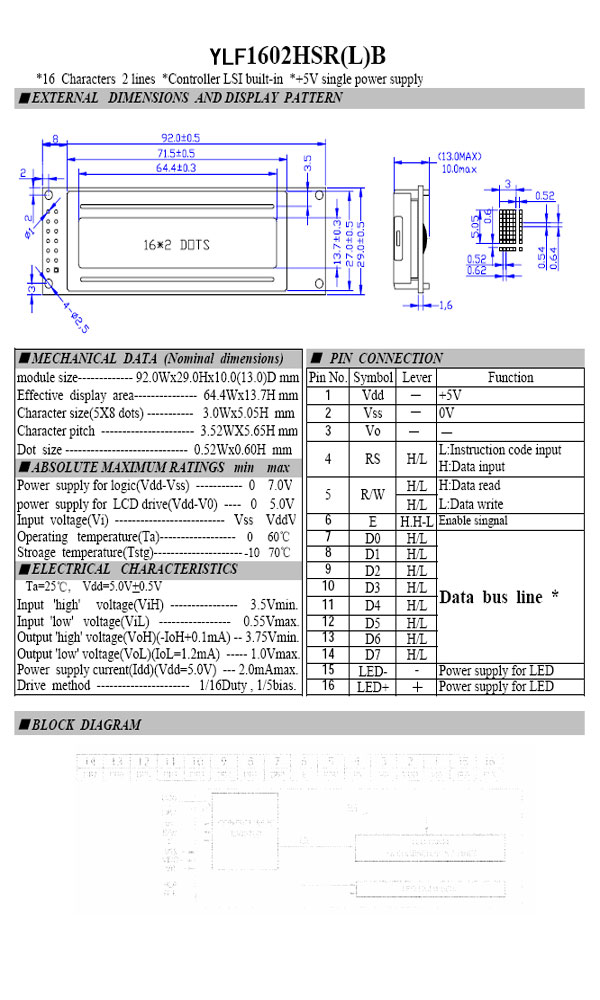

16*2 |
92.0*29.0*10.0(13.0) |
64.4*13.7 |
0.52*0.60 |
|
|
|
|
16*2 |
85.0*36.0*9.5(13.5) |
64.0*16.4 |
0.52*0.54 |
|
|
|
|
16*2 |
84.0*44.0*11.0(14.0) |
62.0*18.0 |
0.52*0.60 |
|
|
|
|
16*2 |
80.0*36.0*10.0(13.0) |
64.5*14.0 |
0.52*0.60 |
|
|
|
|
16*2 |
80.0*36.0*9.5(13.0) |
64.5*14.0 |
0.52*0.60 |
|
|
|
|

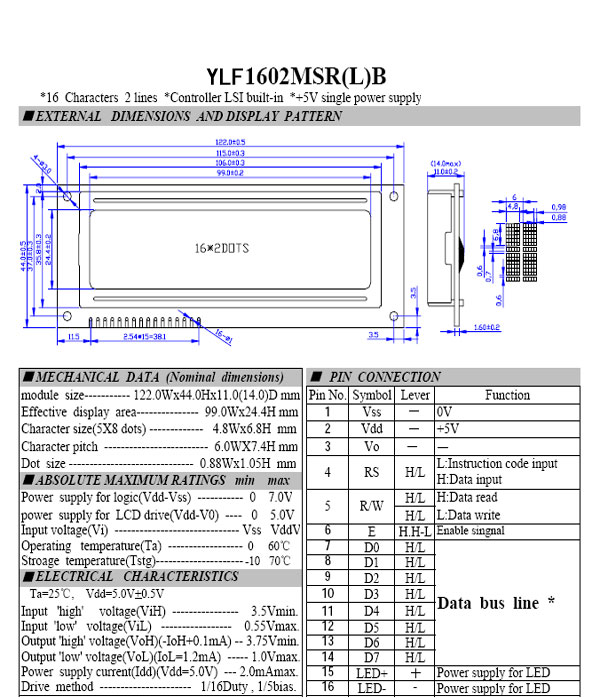

16*2 |
122.0*44.0*11.0(14.0) |
99.0*24.4 |
0.88*1.05 |
|
|
|
|

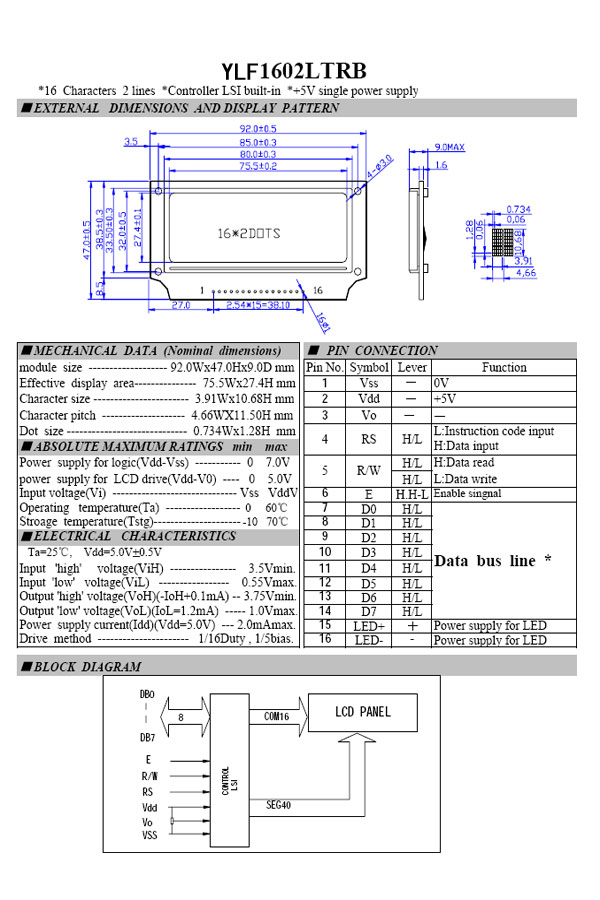

16*2 |
92.0*47.0*9.0 |
75.0*27.4 |
0.734*1.28 |
|
|
1604 |
|
|
16*4 |
87.0*60.0*11.0 |
61.8*25.2 |
0.55*0.55 |
|
|

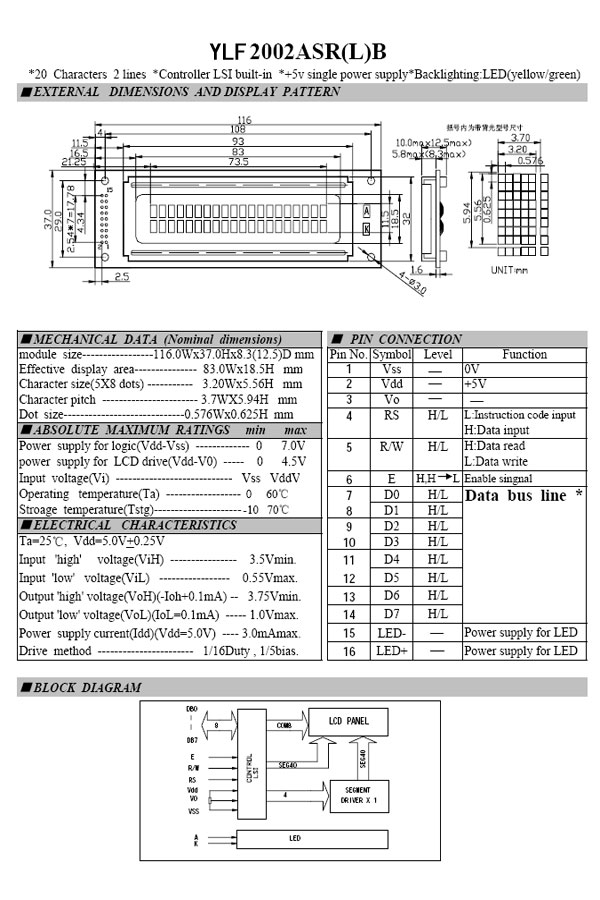

2002 |
|
|
20*2 |
116.0*37.0*8.3(12.5) |
83.0*18.5 |
0.576*0.625 |
|
|
|
|

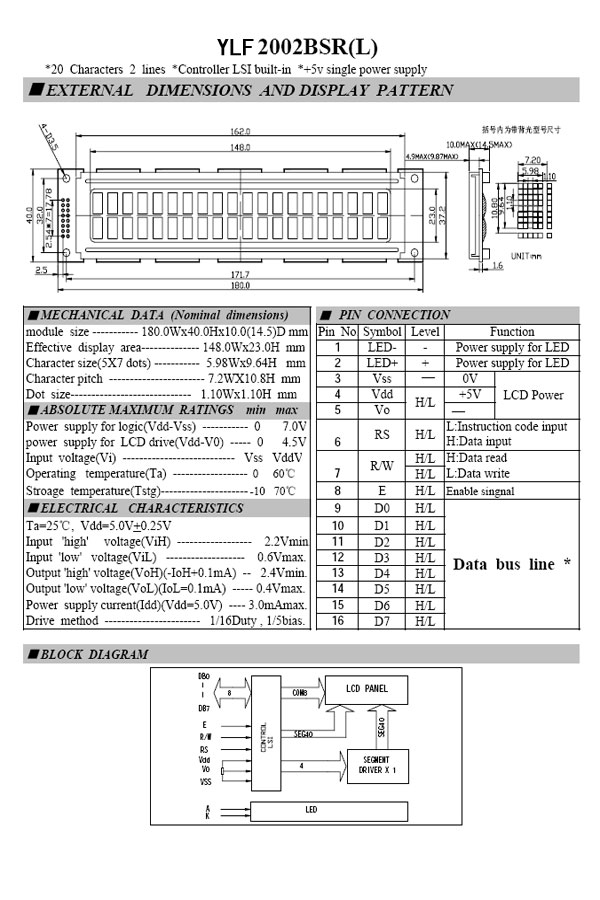

20*2 |
180.0*40.0*10.0(14.5) |
148.0*23.0 |
1.10*1.10 |
|
|

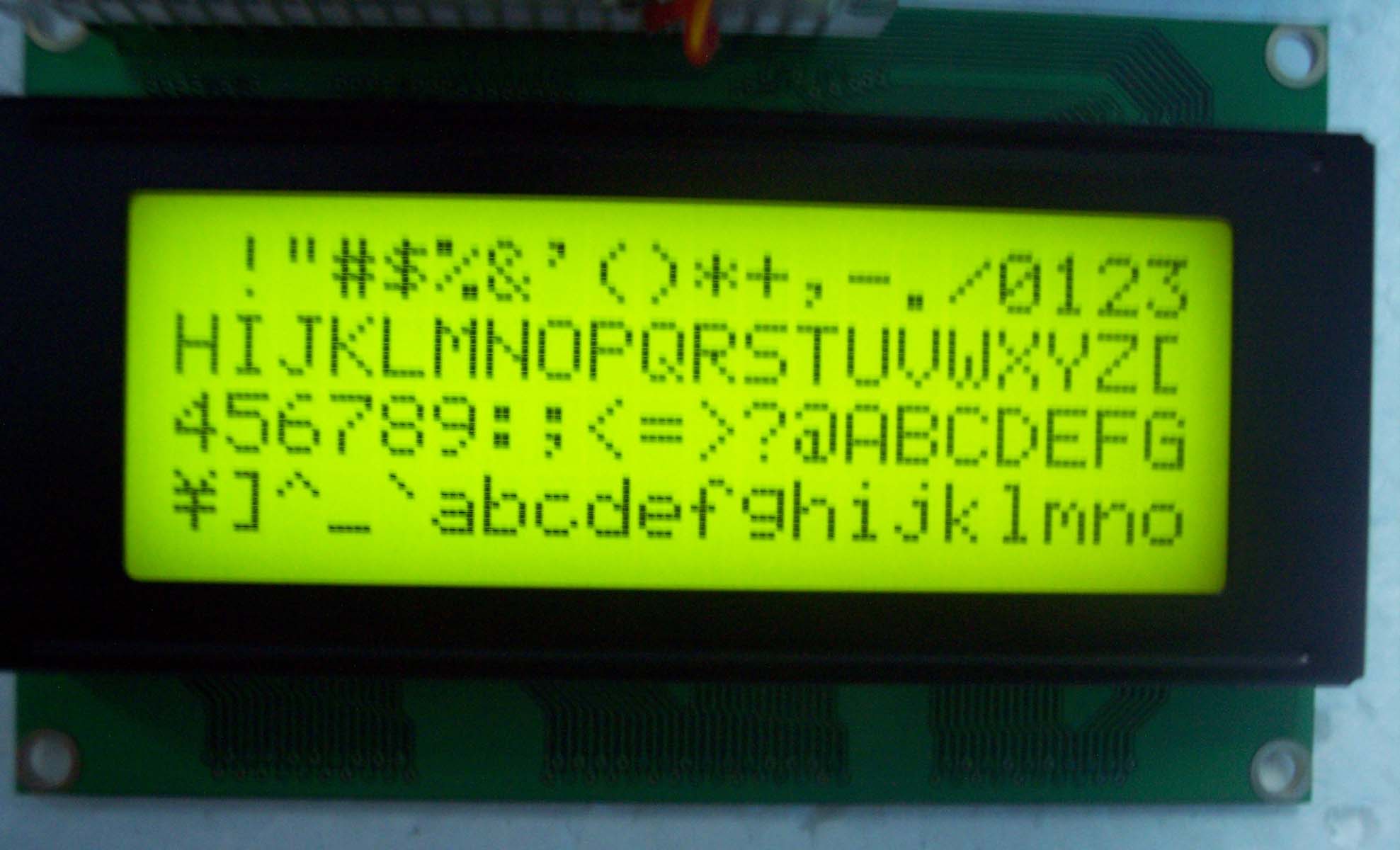

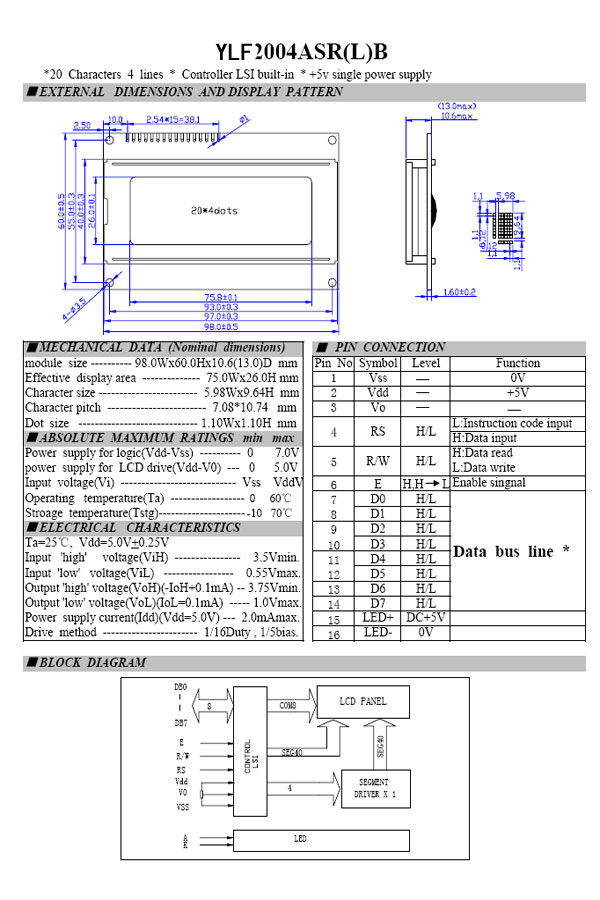

2004 |
|
|
20*4 |
98.0*60.0*10.6(13.0) |
75.0*26.0 |
1.10*1.10 |
|
|
4002 |
|
|
40*2 |
182.0*33.5*11.0(14.0) |
154.5*15.8 |
0.60*0.65 |
|
|
4004 |
|
|
40*4 |
190.0*54.0*11.0(14.0) |
147.0*29.5 |
0.50*0.55 |
|

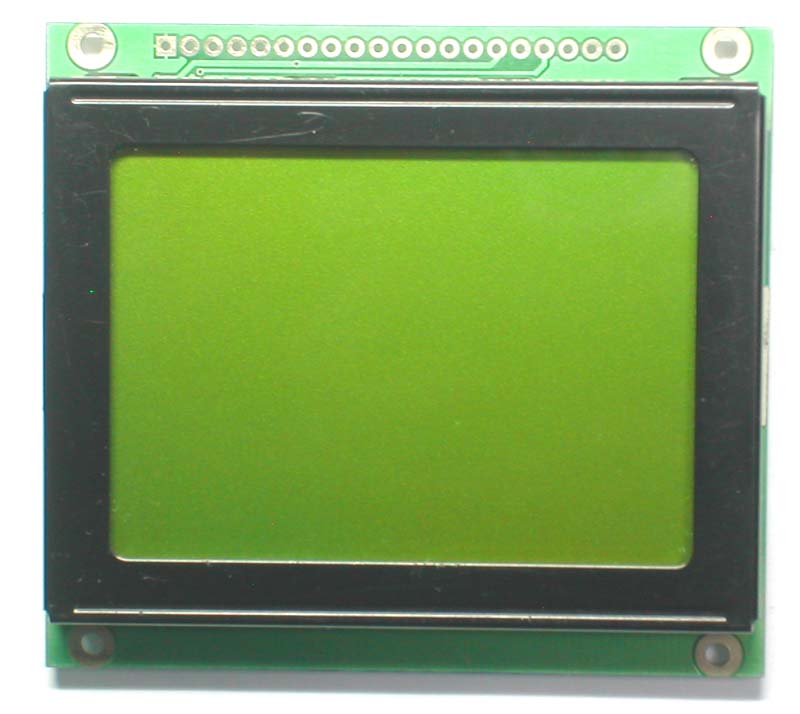

| 12864 |
ylf12864 |
12864 |
128×64 |
78.0×70.0×0.378×0.54 |
62.0×44.0 |
0.438×0.60 |
|
|
| |

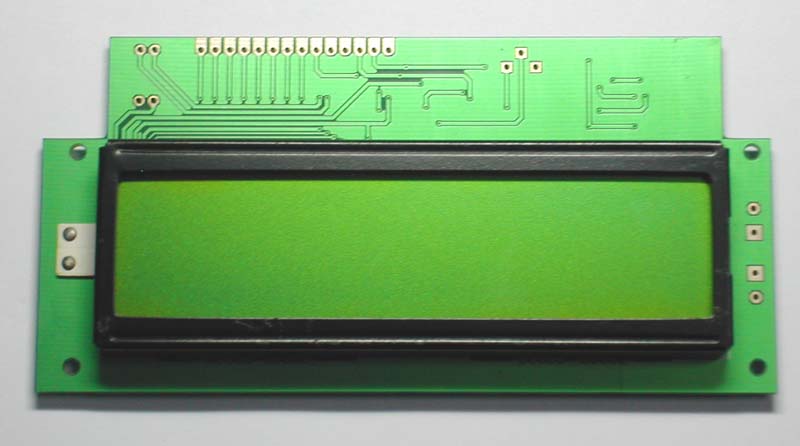

16032 |
ylf16032A |
16032 |
160×32 |
125.0×62.0×0.55×0.55 |
99.4×24.5 |
0.59×0.59 |
|
|
| |
|
|
|
|
|
|
|
|
| |
|
